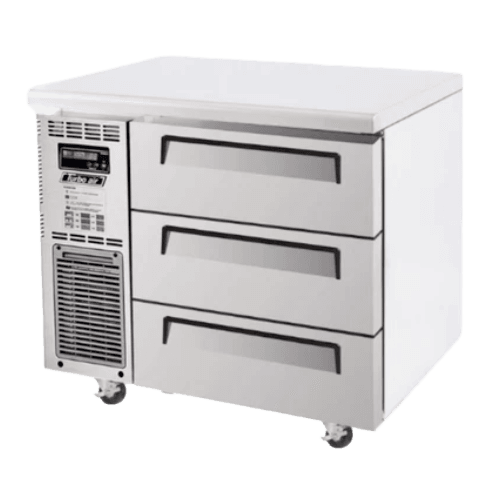

Stainless steel 3-drawer underbench freezer with ventilation panel and caster wheels.

new

Turbo Air - KUF9-3D-3-N - 3 Drawers Underbench Freezer

$5,335.00

Tax included. Shipping calculated at checkout.

Fast Australia Wide Shipping

Payment & Security

All orders are processed through our secure online checkout. Your payment information is processed securely. We do not store credit card details nor have access to your credit card information. We also accept bank deposits - our banking details will be displayed after you place your order.

The Turbo Air KUF9-3D-3-N Underbench Freezer is a compact, high-performance commercial freezer designed for kitchens requiring organised frozen storage with rapid access to ingredients during busy service periods. Featuring three refrigerated drawers with full-size GN pan compatibility, this unit is ideal for restaurants, cafés, hotels, and hospitality venues seeking efficient frozen storage in a space-saving underbench footprint.

With a 198-litre capacity and fan-forced cooling system, the KUF9-3D-3-N delivers consistent freezing performance while keeping products organised and easily accessible. The drawer-based design allows staff to quickly locate and retrieve ingredients, helping streamline workflow and improve kitchen efficiency.

Built with Turbo Air’s advanced refrigeration technology, durable stainless steel construction, and eco-friendly R290 refrigerant, this underbench freezer provides dependable commercial performance and long-term reliability for demanding hospitality environments.

Key Features

Premium underbench commercial freezer
Compact 198L capacity ideal for commercial kitchens and food prep areas
3 refrigerated freezer drawers for organised frozen storage
Compatible with 3 × 1/1 GN pans (100mm deep)
Fan-forced (ventilated) cooling for even temperature distribution
Digital temperature control system for precise freezer management
Front breathing system allows installation in tighter spaces
Left-hand side compressor configuration
High-tech monitor system for enhanced operation
Hot gas condensate system for improved efficiency
Durable stainless steel interior and exterior (SUS 439) construction
High-density CFC-free polyurethane insulation
Eco-friendly R290 refrigerant for efficient operation
Castor wheels included for easy positioning and cleaning access
Drawer-based design improves organisation and accessibility

Specifications

Model: KUF9-3D-3-N
Product Type: Underbench Freezer
Capacity: 198 Litres
Drawer Configuration: 3 freezer drawers
GN Pan Capacity: 3 × 1/1 GN pans, maximum 100mm deep
GN Pans Included: No
Temperature Range: -21°C to -12°C (typical Turbo Air freezer operating range)
Dimensions: 900 W x 700 D x 855 H mm (including castors)
Required Clearance Height: 860 mm
Cooling System: Ventilated fan-forced cooling
Controller: Digital temperature controller
Compressor Position: Left-hand side
Refrigerant: R290
Power Consumption: 400W
Amps: 2.5A
Electrical: 220–240V / 50Hz / 1 Phase, 10A plug
Material: Stainless steel interior and exterior (SUS 439)
Insulation: High-density CFC-free polyurethane insulation
Weight: 84 kg
Shelving: No adjustable shelves included
Lighting: No LED lighting
Mobility: Castor wheels included
Additional Features: Front breathing system, high-tech monitor, hot gas condensate system
Suitable For: Commercial kitchens, hospitality venues, frozen ingredient storage, food preparation stations
Usage Instructions: Maintain clean condenser and drawer interiors
Set Up Instructions: Plug-in unit and allow proper ventilation clearance
Care Instructions: Clean drawers, seals, and condenser regularly
Warranty: 3 Years parts and labour (Australia-wide)

Warranty

3 Years parts and labour (Australia-wide).

Why You'll love it

The KUF9-3D-3-N is designed for kitchens where fast access to frozen ingredients is essential. Its three-drawer configuration keeps products organised and within easy reach, reducing preparation times and helping staff work more efficiently during busy service periods.

With reliable fan-forced cooling, durable stainless steel construction, and practical commercial features such as front breathing installation and castor mobility, this unit delivers dependable freezing performance while maximising workflow and productivity in compact commercial kitchens.
